Galvanized 50 Ft X 50 Ft 4-Rail with Mesh 10 Stall Barn Kit with 30 Ft Gable Roof

Save 38%
Rite Farm ProductsSKU: 50X50BK4RM

Sale price$12,399.99 Regular price$19,999.99
Contact us to Place an Order ->

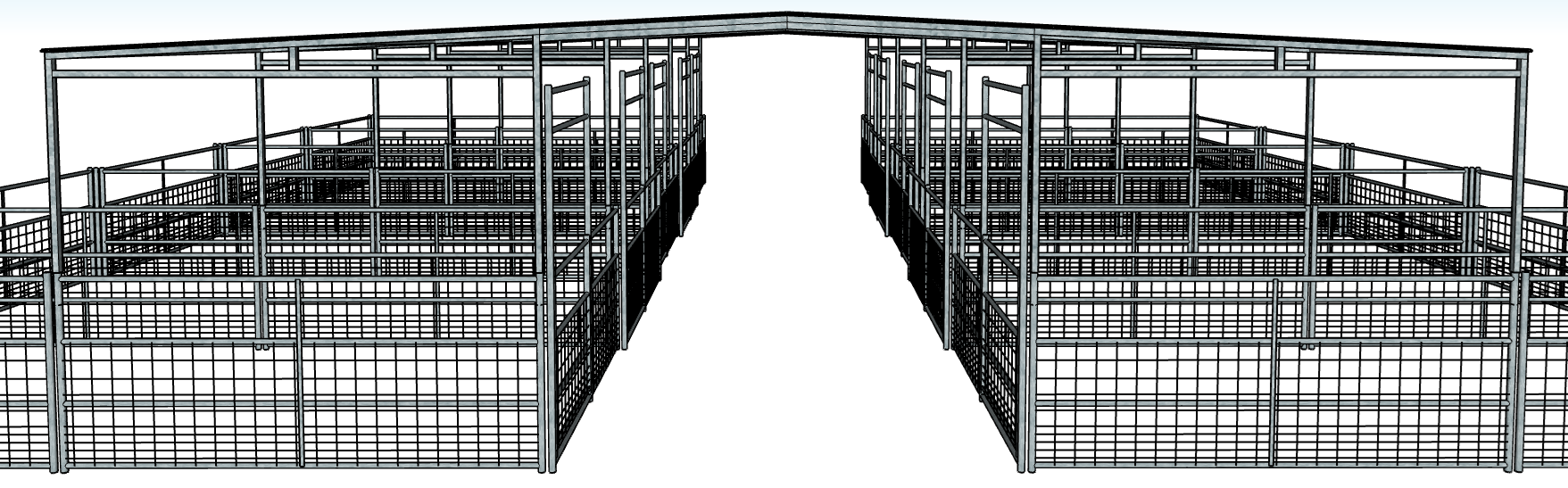

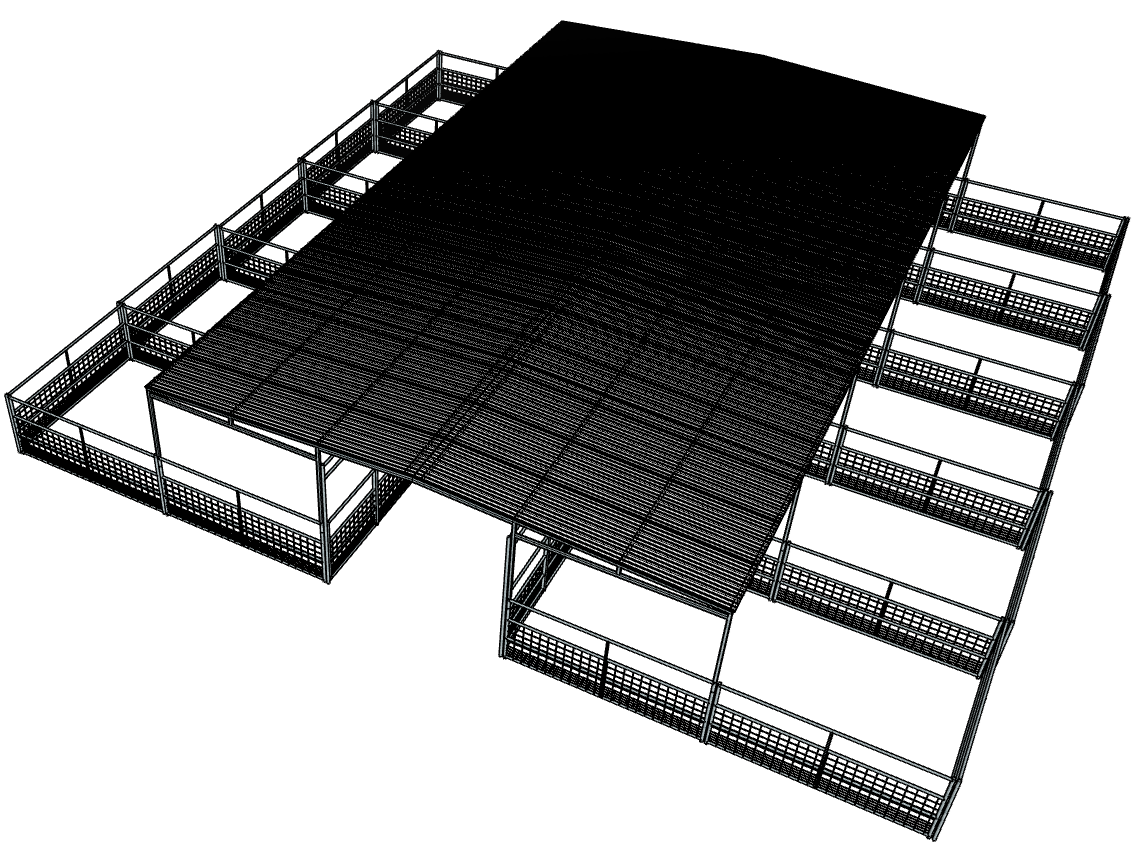

Rite Farm Products galvanized 50-foot-long by 50-foot-wide 4-rail with mesh 10 stall barn kit with a 50-foot by 30-foot gable roof. Ten 10-foot by 20-foot stalls with a 10-foot by 50-foot covered roof center hall. Covered hallway is great for placing livestock into their stall and also for keeping your stall supplies protected under a covered area. Gable barn style 50-foot by 30-foot roof covering features white steel 29-gauge R-Panels. Thoughtfully designed roof pitch will allow for water collection if choosing to add a gutter livestock watering system. Roof adds 5 foot 4 inches of height to the overall panel height making this kit 9 feet 6 inches tall overall. 4 rail is our 50-Inch-tall panel system. Gate panels are 8 foot tall overall for the gated section and 50 inches tall overall on the panel sections. Features heavy duty 14 gauge 1 5/8" vertical posts and heavy duty 14 gauge 1 1/4" horizontal rails. Strong long-lasting welded hinges with a welded chain latch. Small livestock panels feature a 2/3 mesh panel with 2 inch vertical spacing at the base that get progressively larger as it moves up the panel. This allows for very small livestock to be contained and not be able to get out such as piglets, baby lambs and goat kids. Our mesh small livestock panels are specifically designed for smaller livestock including Goats, Sheep, Pigs, Alpacas, Llamas, and exotic animals that are similar in size. All systems are galvanized and built to last. Requires ground anchors to secure to the earth, not included. Please be sure to check local building codes prior to ordering. Also note that our roofing kits are not engineered to meet any specific building codes.

Kit Includes:

34- 10 ft 4 rail panels with mesh #120P50X4M

10- 10 ft 4 rail gate panel with mesh #120GP96X4M

104- Panel clamps #40C

6- 10 ft gable roof truss #120GT

12- 10 ft roof truss #120T60

40- 10 ft roof truss purlin #TP120

36- 15 ft white steel roofing R-Panel

5- 10 ft 6-inch white steel roofing ridge cap

80- angle bracket 1 5/8-inch x 1 5/8-inch #40AB

1- hardware package
